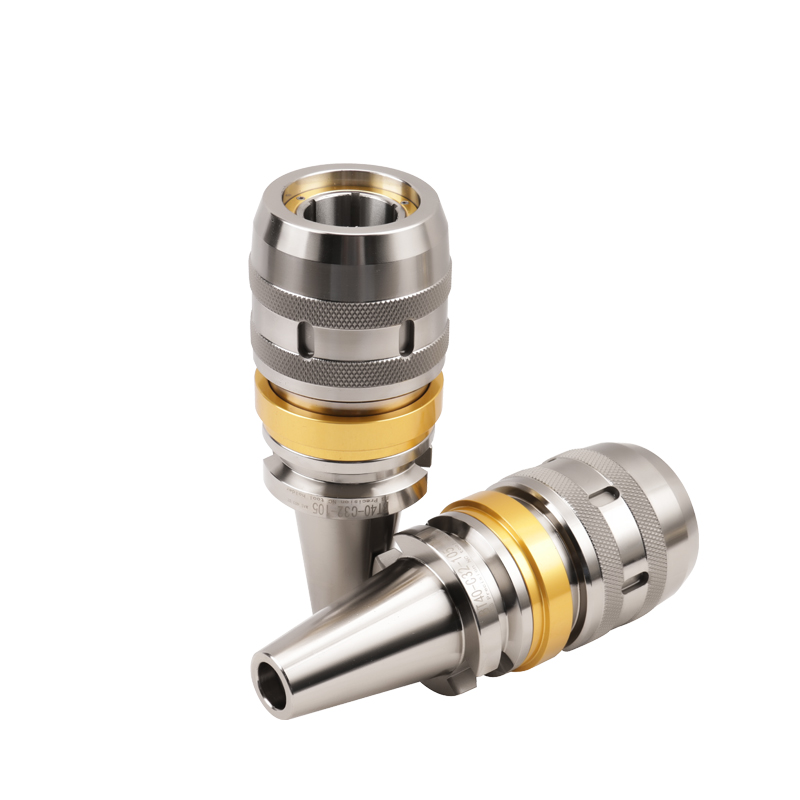

BT-C bt30 bt40 bt50 force milling chuck
The standard milling chuck has the spacing between chuck body and transfer screw cap. It easily makes water with dust and
cutting scrap into the spacing, and it also will be move to take the dust and cutting scrap together running, it not only fret the
surface of chuck body and transfer screw cap, but also break the needle roller bearing.
The holding precision will be falling, at last it lose holding capacity.

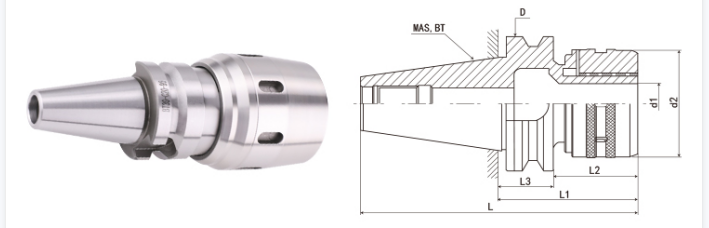

| Model | L | L1 | L2 | L3 | D | d1 | d2 | Range |
| BT30-C20-80L | 128.4 | 80 | 50 | 22 | 46 | 20 | 56 | 3 4 5 6 8 10 12 14 16 |
| BT30-C25-100L | 148.4 | 100 | 60 | 22 | 46 | 25 | 61 | 3 4 5 6 8 10 12 14 16 18 20 |
| BT30-C32-105L | 153.4 | 105 | 70 | 22 | 46 | 32 | 68 | 3 4 5 6 8 10 12 14 16 18 20 22 24 25 |
| Model | L | L1 | L2 | L3 | D | d1 | d2 | Range |
| BT40-C20-100L | 165.4 | 90 | 50 | 27 | 63 | 20 | 56 | 3 4 5 6 8 10 12 14 16 |
| BT40-C25-100L | 165.4 | 100 | 60 | 27 | 63 | 25 | 61 | 3 4 5 6 8 10 12 14 16 18 20 |
| BT40-C25-135L | 200.4 | 135 | 60 | 27 | 63 | 25 | 61 | 3 4 5 6 8 10 12 14 16 18 20 |
| BT40-C32-105L | 170.4 | 105 | 70 | 27 | 63 | 32 | 68 | 3 4 5 6 8 10 12 14 16 18 20 22 24 25 |
| BT40-C32-135L | 200.4 | 135 | 70 | 27 | 63 | 32 | 68 | 3 4 5 6 8 10 12 14 16 18 20 22 24 25 |
| BT40-C32-165L | 230.4 | 165 | 70 | 27 | 63 | 32 | 68 | 3 4 5 6 8 10 12 14 16 18 20 22 24 25 |
| BT40-C32-200L | 265.4 | 200 | 70 | 27 | 63 | 32 | 68 | 3 4 5 6 8 10 12 14 16 18 20 22 24 25 |
| BT40-C32-250L | 315.4 | 250 | 70 | 27 | 63 | 32 | 68 | 3 4 5 6 8 10 12 14 16 18 20 22 24 25 |
| BT40-C42-130L | 195.4 | 130 | 90 | 27 | 63 | 42 | 87 | 3 4 5 6 8 10 12 14 16 18 20 22 24 25 28 30 32 34 36 |
| Model | L | L1 | L2 | L3 | D | d1 | d2 | Range |
| BT50-C25-110L | 211.8 | 110 | 60 | 38 | 100 | 25 | 61 | 3 4 5 6 8 10 12 14 16 18 20 |
| BT50-C25-165L | 236.8 | 165 | 60 | 38 | 100 | 25 | 61 | 3 4 5 6 8 10 12 14 16 18 20 |
| BT50-C32-110L | 211.8 | 110 | 70 | 38 | 100 | 32 | 68 | 3 4 5 6 8 10 12 14 16 18 20 22 24 25 |
| BT50-C32-135L | 236.8 | 135 | 70 | 38 | 100 | 32 | 68 | 3 4 5 6 8 10 12 14 16 18 20 22 24 25 |
| BT50-C32-165L | 266.8 | 165 | 70 | 38 | 100 | 32 | 68 | 3 4 5 6 8 10 12 14 16 18 20 22 24 25 |
| BT50-C32-200L | 301.8 | 200 | 70 | 38 | 100 | 32 | 68 | 3 4 5 6 8 10 12 14 16 18 20 22 24 25 |
| BT50-C32-250L | 351.8 | 250 | 70 | 38 | 100 | 32 | 68 | 3 4 5 6 8 10 12 14 16 18 20 22 24 25 |
| BT50-C32-300L | 401.8 | 300 | 70 | 38 | 100 | 32 | 68 | 3 4 5 6 8 10 12 14 16 18 20 22 24 25 |
| BT50-C42-135L | 236.8 | 135 | 90 | 38 | 100 | 42 | 87 | 3 4 5 6 8 10 12 14 16 18 20 22 24 25 28 30 32 34 36 |
| BT50-C42-165L | 266.8 | 165 | 90 | 38 | 100 | 42 | 87 | 3 4 5 6 8 10 12 14 16 18 20 22 24 25 28 30 32 34 36 |
| BT50-C42-200L | 301.8 | 200 | 90 | 38 | 100 | 42 | 87 | 3 4 5 6 8 10 12 14 16 18 20 22 24 25 28 30 32 34 36 |
