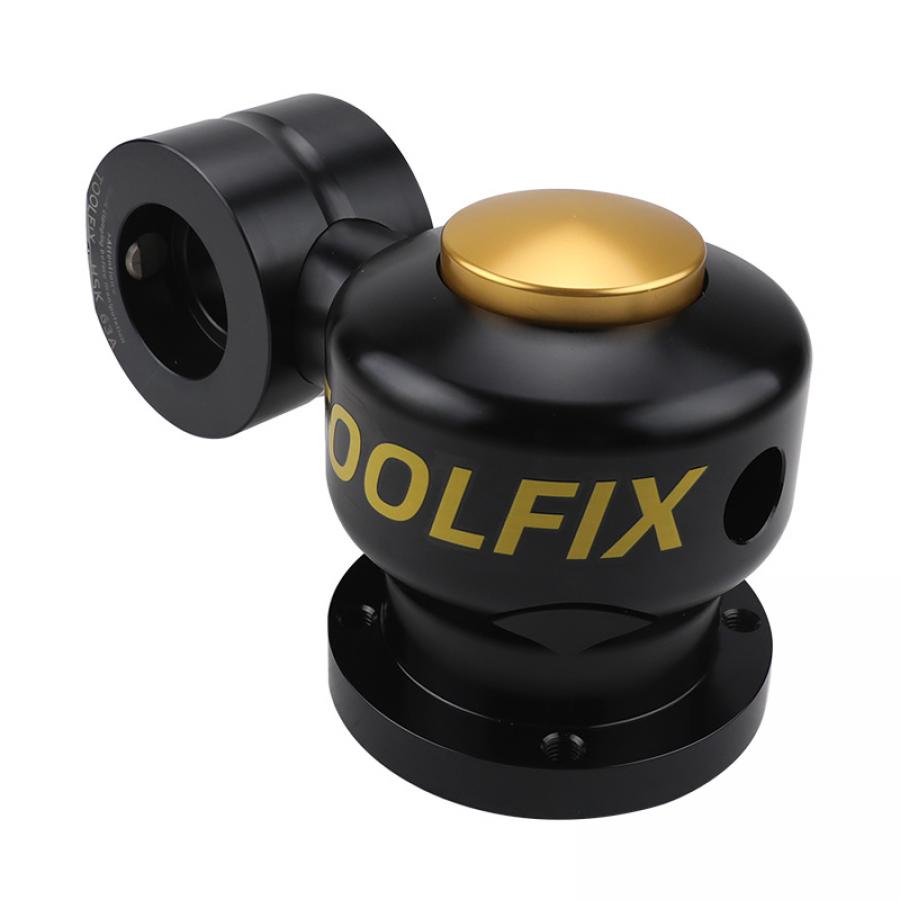

The HSK Universal Locking Tool Holder is an innovative tool fixation device featuring multi-angle adjustment functionality, which supports precise positioning at three settings: 0°, 45°, and 90°. It is compatible with HSK series tool holders for secure machining needs.
Through its unique lever force-amplification design, the operator only needs a standard wrench and minimal manual force to reduce the required high-intensity locking force of traditional HSK tool holders by over 60%. This enables true one-handed quick tool clamping.
Its angle-adaptive characteristic not only significantly improves tool-setting efficiency but also ensures locking stability across various machining angles, providing reliable support for precision machining.

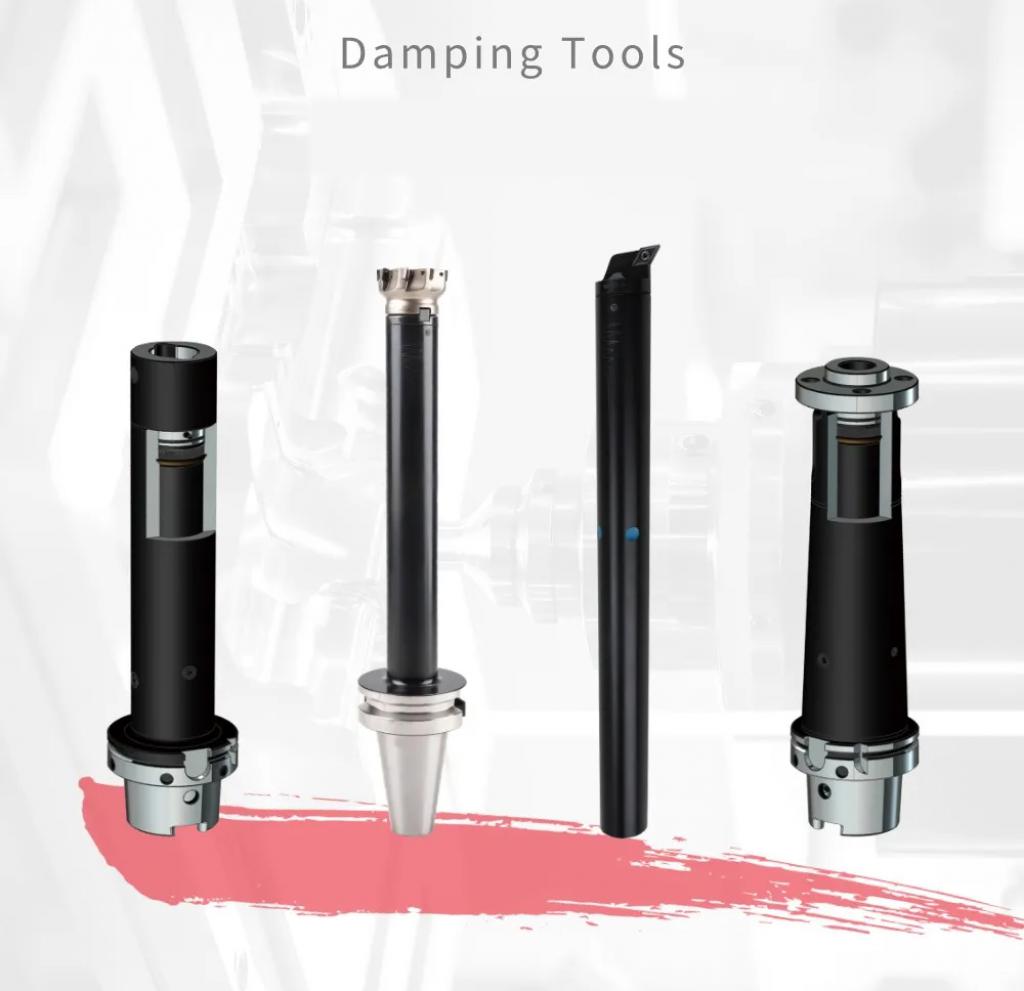

The vibration damping toolholder for deep hole machining is a passive dynamic vibration damping system with an internal pre-conditioned heavy metal damping unit supported by elastic elements in the cavity of the toolholder.
Advantage of Damping tool holder
☑ Effectively improve machining accuracy
Vibration damping toolholder can improve machining accuracy and extend tool life
☑ Effectively improve machining quality
The use of vibration-damping tools can improve machining efficiency, surface finish, especially in the boring process using vibration-damping toolholder, can effectively improve the quality and speed of deep hole turning internal surface

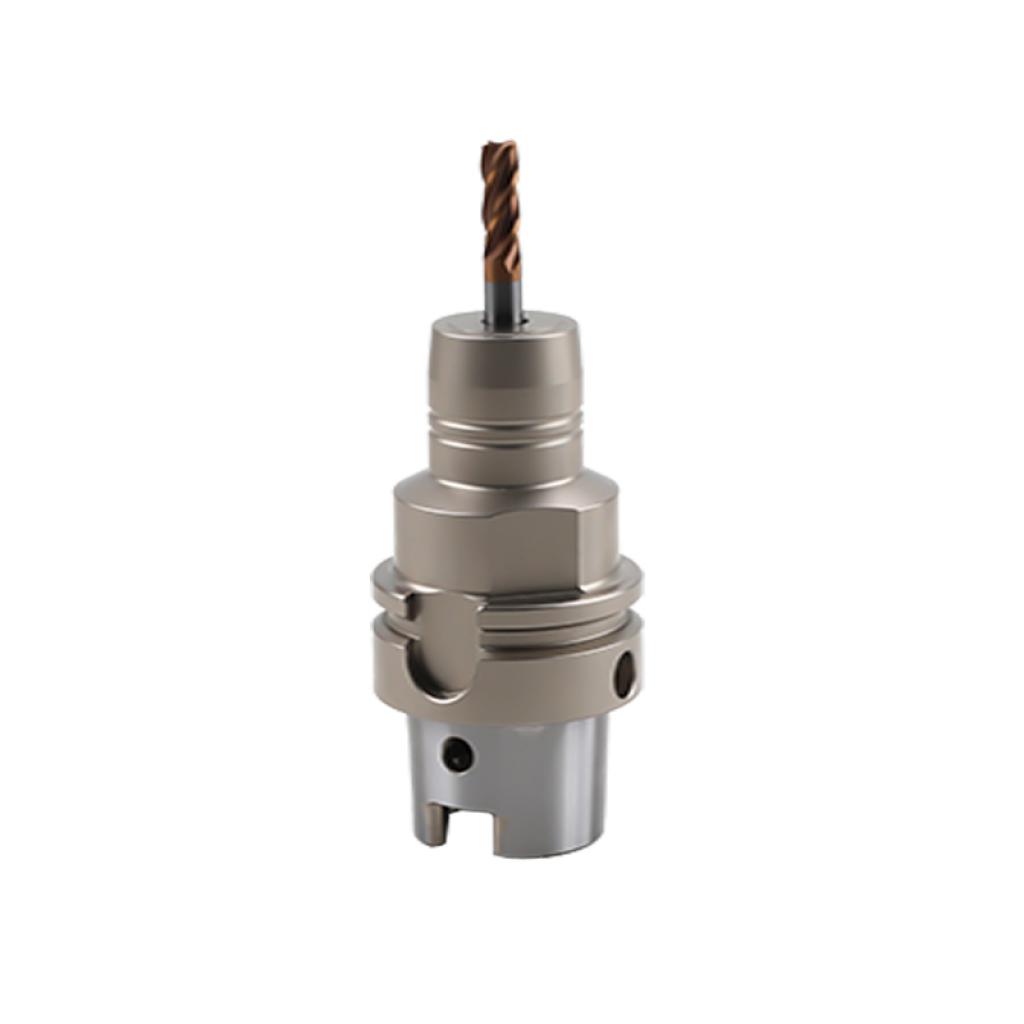

Hydraulic toolholder is a widely used toolholder, the clamping method of this toolholder is different from the traditional toolholder system, tightening only a pressurized bolt, when the bolt is tightened, it will push the sealing block of the piston to generate a hydraulic oil pressure inside the toolholder, the pressure is uniformly transmitted from the circumferential direction to the steel expansion sleeve, and then the expansion wall will be clamped to the tool, with a high clamping accuracy. Moreover, the hydraulic toolholder can realize the change of diameter by changing the barrel clamp, which is more adaptable and economical. Some customers may have questions, why the hydraulic toolholder does not clamp the tap? Hydraulic shank for tapping a little too big for the thread requirements are relatively not so high, and tapping the chip space is small.
