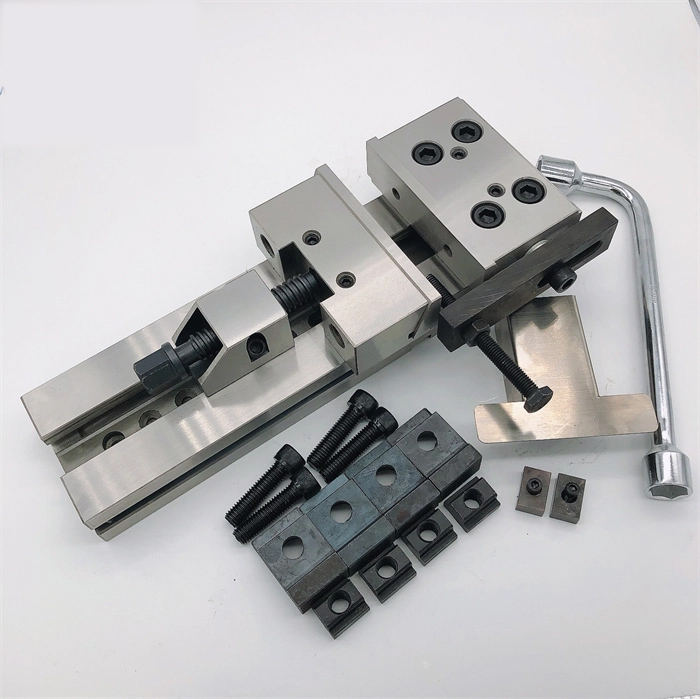

Machine vise and bench vise

The vise is a kind of universal fixture. There are two kinds of organic vise and table vise. The machine vise is often used

as an accessory of milling machine, drilling machine, surface grinder and other machine tools. It is fixed on the workbench

of the machine tool to clamp the workpiece for cutting processing. The table vise is fixed on the desktop to clamp the

workpiece or object. According to the different application methods of clamping force, it is divided into the common vise

which is clamped by manually rotating the trapezoidal lead screw, And the oil pressure flat-nose pliers that use the built-in

oil pressure booster to provide the clamping force. The clamping force of the oil pressure flat-nose pliers can be amplified

by its special structure of the oil pressure thruster, thus generating a huge clamping force. The force of the spring installed

in the oil pressure cylinder can also be used to increase the shock absorption effect of its cutting. The accuracy of the flat-nose

pliers can be divided from high to low, and the parallelism and perpendicularity between the high-precision flat-nose pliers jaw

and the working table can reach 0.003mm

Feature:

1.High quality alloy steel by special treatment, the hardness is HRC58-62 to ensurehigh wear resistance and high tension.

2.Vertical and horizontal two kinds of usage. 3.Used for maching center, CNC milling machine, line cutting, etc
