High precision right angle milling head AG90 ER16 ER20 ER25 ER32 ER40 ER Output angle head for cnc
- Taper handle：
- Hardness：
- Material：
- Accuracy：
CONTACT US
- PARAMETERS
- VEDIOS
Right angle head ag90 er16 er25 er32 er40 er50 angle head

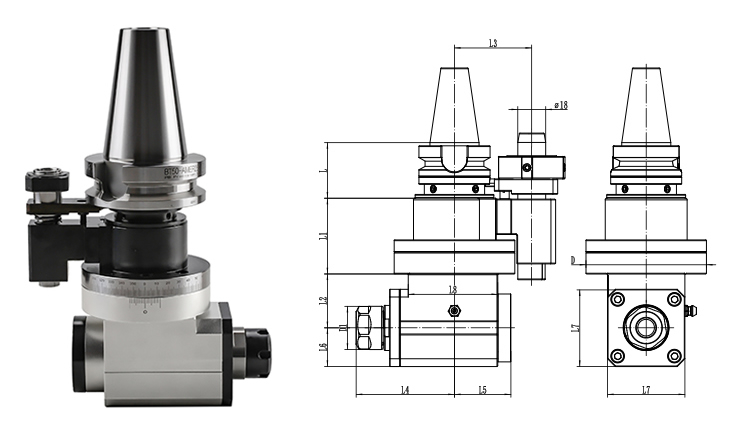

| Model | Output | L | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | D | D1 | Power | Max Speed | Max Torque | Reauction ratio |
| AG90-ER16-120 | ER16 | 36 | 49 | 35 | 50 | 70 | 39 | 25 | 50 | 60 | 78 | 28 | 1.5KW | 4500PRM | 12NM | 1:01 |
| AG90-ER20-120 | ER20 | 36 | 49 | 35 | 50 | 70 | 39 | 25 | 50 | 60 | 78 | 34 | 2.0KW | 4000PRM | 16NM | 1:01 |
| AG90-ER25-120 | ER25 | 36 | 49 | 35 | 50 | 74 | 39 | 25 | 50 | 60 | 78 | 42 | 3.0KW | 4000PRM | 25NM | 1:01 |
| AG90-ER16-160 | ER16 | 44 | 74 | 43 | 65 | 70 | 39 | 28 | 56 | 63 | 108 | 28 | 1.5KW | 4500PRM | 12NM | 1:01 |
| AG90-ER20-160 | ER20 | 44 | 74 | 43 | 65 | 70 | 39 | 28 | 56 | 63 | 108 | 34 | 2.0KW | 4000PRM | 16NM | 1:01 |
| AG90-ER25-160 | ER25 | 44 | 74 | 43 | 65 | 74 | 39 | 28 | 56 | 63 | 108 | 42 | 3.0KW | 4000PRM | 25NM | 1:01 |
| AG90-ER32-160 | ER32 | 44 | 74 | 43 | 65 | 110 | 60 | 37.5 | 75 | 75 | 108 | 50 | 4.0KW | 3500PRM | 35NM | 1:01 |
| AG90-ER40-160 | ER40 | 44 | 74 | 43 | 65 | 115 | 60 | 37.5 | 75 | 75 | 108 | 63 | 5.0KW | 3000PRM | 60NM | 1:01 |
| AG90-ER16-170 | ER16 | 55 | 74 | 43 | 80/110 | 70 | 39 | 28 | 75 | 75 | 108 | 28 | 1.5KW | 4500PRM | 12NM | 1:01 |
| AG90-ER20-170 | ER20 | 55 | 74 | 43 | 80/110 | 70 | 39 | 28 | 75 | 75 | 108 | 34 | 2.0KW | 4000PRM | 16NM | 1:01 |
| AG90-ER25-170 | ER25 | 55 | 74 | 43 | 80/110 | 74 | 39 | 28 | 75 | 75 | 108 | 42 | 3.0KW | 4000PRM | 25NM | 1:01 |
| AG90-ER32-170 | ER32 | 55 | 74 | 43 | 80/110 | 110 | 60 | 37.5 | 75 | 75 | 108 | 50 | 4.0KW | 3000PRM | 35NM | 1:01 |
| AG90-ER40-170 | ER40 | 55 | 74 | 43 | 80/110 | 115 | 60 | 37.5 | 75 | 75 | 108 | 63 | 5.0KW | 3000PRM | 60NM | 1:01 |
