CNC machine tool SBT40 SBT50 FMHC damping milling tool holder
  • Taper handle：
  • Hardness：
  • Material：
  • Accuracy：
CONTACT US
  • PARAMETERS
  • VEDIOS

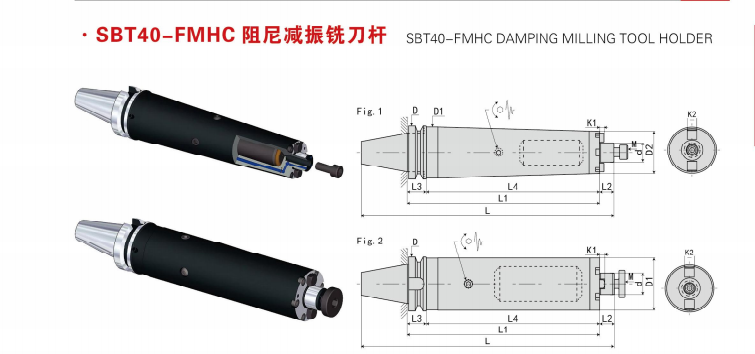

规格 L L1 L2 L3 L4 D D1 D2 d k1 k2 M FIG
SBT40-FMHC16-150L-D37 232.4 150 17 26 124 63 40 37 16 3.2 8 M8*1.25P 1
SBT40-FMHC16-200L-D37 282.4 200 17 26 174 63 40 37 16 3.2 8 M8*1.25P 1
SBT40-FMHC16-250L-D37 332.4 250 17 26 224 63 40 37 16 3.2 8 M8*1.25P 1
SBT40-FMHC16-300L-D37 382.4 300 17 26 274 63 40 37 16 3.2 8 M8*1.25P 1
SBT40-FMHC16-350L-D37 432.4 350 17 26 324 63 40 37 16 3.2 8 M8*1.25P 1
SBT40-FMHC22-150L-D47 233.4 150 18 26 124 63 50 47 22 4.8 10 M10*1.25P 1
SBT40-FMHC22-200L-D47 283.4 200 18 26 174 63 50 47 22 4.8 10 M10*1.25P 1
SBT40-FMHC22-250L-D47 333.4 250 18 26 224 63 50 47 22 4.8 10 M10*1.25P 1
SBT40-FMHC22-300L-D47 383.4 300 18 26 274 63 50 47 22 4.8 10 M10*1.25P 1
SBT40-FMHC22-350L-D47 433.4 350 18 26 324 63 50 47 22 4.8 10 M10*1.25P 1
SBT40-FMHC22-400L-D47 483.4 400 18 26 374 63 50 47 22 4.8 10 M10*1.25P 1
SBT40-FMHC22-450L-D47 533.4 450 18 26 424 63 50 47 22 4.8 10 M10*1.25P 1
SBT40-FMHC22-500L-D47 583.4 500 18 26 474 63 50 47 22 4.8 10 M10*1.25P 1
SBT40-FMHC27-200L-D60 283.4 200 20 26 174 63 - 60 27 5.8 12 M12*1.75P 2
SBT40-FMHC27-250L-D60 333.4 250 20 26 224 63 - 60 27 5.8 12 M12*1.75P 2
SBT40-FMHC27-300L-D60 383.4 300 20 26 274 63 - 60 27 5.8 12 M12*1.75P 2
SBT40-FMHC27-350L-D60 433.4 350 20 26 324 63 - 60 27 5.8 12 M12*1.75P 2
SBT40-FMHC27-400L-D60 483.4 400 20 26 374 63 - 60 27 5.8 12 M12*1.75P 2
SBT40-FMHC27-450L-D60 533.4 450 20 26 424 63 - 60 27 5.8 12 M12*1.75P 2
SBT40-FMHC27-500L-D60 583.4 500 20 26 474 63 - 60 27 5.8 12 M12*1.75P 2

规格 L L1 L2 L3 L4 D D1 D2 d k1 k2 M FIG
SBT50-FMHC16-200L-D37 318.8 200 17 36.5 163.5 100 40 37 16 3.2 8 M8*1.25P 1
SBT50-FMHC16-250L-D37 368.8 250 17 36.5 213.5 100 40 37 16 3.2 8 M8*1.25P 1
SBT50-FMHC16-300L-D37 418.8 300 17 36.5 263.5 100 40 37 16 3.2 8 M8*1.25P 1
SBT50-FMHC16-350L-D37 468.8 350 17 36.5 313.5 100 40 37 16 3.2 8 M8*1.25P 1
SBT50-FMHC22-200L-D47 319.8 400 17 36.5 363.5 100 40 37 16 3.2 8 M8*1.25P 1
SBT50-FMHC22-250L-D47 369.8 450 17 36.5 413.5 100 40 37 16 3.2 8 M8*1.25P 1
SBT50-FMHC22-300L-D47 419.8 500 17 36.5 463.5 100 40 37 16 3.2 8 M8*1.25P 1
SBT50-FMHC22-350L-D47 469.8 350 18 36.5 313.5 100 50 47 22 4.8 10 M10*1.25P 1
SBT50-FMHC22-400L-D47 519.8 400 18 36.5 363.5 100 50 47 22 4.8 10 M10*1.25P 1
SBT50-FMHC22-450L-D47 569.8 450 18 36.5 413.5 100 50 47 22 4.8 10 M10*1.25P 1
SBT50-FMHC22-500L-D47 619.8 500 18 36.5 463.5 100 50 47 22 4.8 10 M10*1.25P 1
SBT50-FMHC22-550L-D47 669.8 550 18 36.5 513.5 100 50 47 22 4.8 10 M10*1.25P 1
SBT50-FMHC22-600L-D47 719.8 600 18 36.5 563.5 100 50 47 22 4.8 10 M10*1.25P 1
SBT50-FMHC22-650L-D47 769.8 650 18 36.5 613.5 100 50 47 22 4.8 10 M10*1.25P 1
SBT50-FMHC22-700L-D47 819.8 700 18 36.5 663.5 100 50 47 22 4.8 10 M10*1.25P 1
SBT50-FMHC22-250L-D58 369.8 250 18 36.5 213.5 100 62 58 22 4.8 10 M10*1.25P 1
SBT50-FMHC22-300L-D58 419.8 300 18 36.5 263.5 100 62 58 22 4.8 10 M10*1.25P 1
SBT50-FMHC22-350L-D58 469.8 350 18 36.5 313.5 100 62 58 22 4.8 10 M10*1.25P 1
SBT50-FMHC22-400L-D58 519.8 400 18 36.5 363.5 100 62 58 22 4.8 10 M10*1.25P 1
SBT50-FMHC22-450L-D58 569.8 450 18 36.5 413.5 100 62 58 22 4.8 10 M10*1.25P 1
SBT50-FMHC22-500L-D58 619.8 500 18 36.5 463.5 100 62 58 22 4.8 10 M10*1.25P 1
SBT50-FMHC22-550L-D58 669.8 550 18 36.5 513.5 100 62 58 22 4.8 10 M10*1.25P 1
SBT50-FMHC22-600L-D58 719.8 600 18 36.5 563.5 100 62 58 22 4.8 10 M10*1.25P 1
SBT50-FMHC22-650L-D58 769.8 650 18 36.5 613.5 100 62 58 22 4.8 10 M10*1.25P 1
SBT50-FMHC22-700L-D58 819.8 700 18 36.5 663.5 100 62 58 22 4.8 10 M10*1.25P 1
SBT50-FMHC27-250L-D58 371.8 250 20 36.5 213.5 100 62 58 27 5.8 12 M12*1.75P 2
SBT50-FMHC27-300L-D58 421.8 300 20 36.5 263.5 100 62 58 27 5.8 12 M12*1.75P 2
SBT50-FMHC27-350L-D58 471.8 350 20 36.5 313.5 100 62 58 27 5.8 12 M12*1.75P 2
SBT50-FMHC27-400L-D58 521.8 400 20 36.5 363.5 100 62 58 27 5.8 12 M12*1.75P 2
SBT50-FMHC27-450L-D58 571.8 450 20 36.5 413.5 100 62 58 27 5.8 12 M12*1.75P 2
SBT50-FMHC27-500L-D58 621.8 500 20 36.5 463.5 100 62 58 27 5.8 12 M12*1.75P 2
SBT50-FMHC27-550L-D58 671.8 550 20 36.5 513.5 100 62 58 27 5.8 12 M12*1.75P 2
SBT50-FMHC27-600L-D58 721.8 600 20 36.5 563.5 100 62 58 27 5.8 12 M12*1.75P 2
SBT50-FMHC27-650L-D58 771.8 650 20 36.5 613.5 100 62 58 27 5.8 12 M12*1.75P 2
SBT50-FMHC27-700L-D58 821.8 700 20 36.5 663.5 100 62 58 27 5.8 12 M12*1.75P 2
SBT50-FMHC27-250L-D74 371.8 250 20 36.5 213.5 100 78 74 27 5.8 12 M12*1.75P 2
SBT50-FMHC27-300L-D74 421.8 300 20 36.5 263.5 100 78 74 27 5.8 12 M12*1.75P 2
SBT50-FMHC27-350L-D74 471.8 350 20 36.5 313.5 100 78 74 27 5.8 12 M12*1.75P 2
SBT50-FMHC27-400L-D74 521.8 400 20 36.5 363.5 100 78 74 27 5.8 12 M12*1.75P 2
SBT50-FMHC27-450L-D74 571.8 450 20 36.5 413.5 100 78 74 27 5.8 12 M12*1.75P 2
SBT50-FMHC27-500L-D74 621.8 500 20 36.5 463.5 100 78 74 27 5.8 12 M12*1.75P 2
SBT50-FMHC27-550L-D74 671.8 550 20 36.5 513.5 100 78 74 27 5.8 12 M12*1.75P 2
SBT50-FMHC27-600L-D74 721.8 600 20 36.5 563.5 100 78 74 27 5.8 12 M12*1.75P 2
SBT50-FMHC27-650L-D74 771.8 650 20 36.5 613.5 100 78 74 27 5.8 12 M12*1.75P 2
SBT50-FMHC27-700L-D74 821.8 700 20 36.5 663.5 100 78 74 27 5.8 12 M12*1.75P 2
SBT50-FMHC32-250L-D80 373.8 250 22 36.5 213.5 100 95 80 32 6.8 14 M16*2.0P 2
SBT50-FMHC32-300L-D80 423.8 300 22 36.5 263.5 100 95 80 32 6.8 14 M16*2.0P 2
SBT50-FMHC32-350L-D80 473.8 350 22 36.5 313.5 100 95 80 32 6.8 14 M16*2.0P 2
SBT50-FMHC32-400L-D80 523.8 400 22 36.5 363.5 100 95 80 32 6.8 14 M16*2.0P 2
SBT50-FMHC32-450L-D80 573.8 450 22 36.5 413.5 100 95 80 32 6.8 14 M16*2.0P 2
