CNC machine tool HSK63A HSK100A -SNER damping milling tool holder
  • Taper handle：
  • Hardness：
  • Material：
  • Accuracy：
CONTACT US
  • PARAMETERS
  • VEDIOS

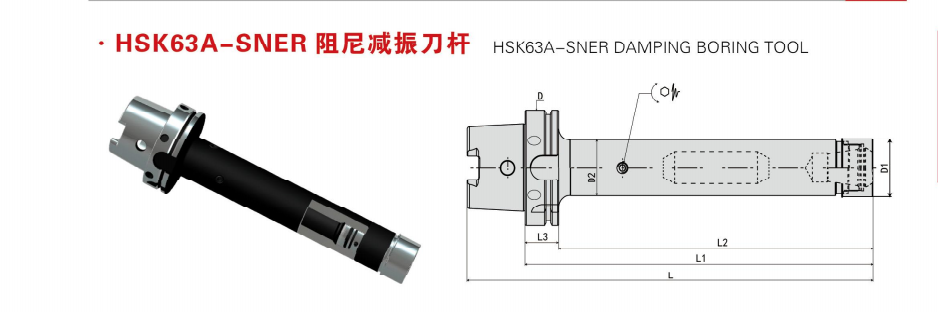

规格 L L1 L2 L3 D D1 D2 夹持范围Range
HSK63A-SNER25-180-D38 202 180 154 26 63 38 40 1-16 mm
HSK63A-SNER25-230-D38 252 230 204 26 63 38 40 1-16 mm
HSK63A-SNER25-280-D38 302 280 254 26 63 38 40 1-16 mm
HSK63A-SNER25-330-D38 352 330 304 26 63 38 40 1-16 mm
HSK63A-SNER25-380-D38 402 380 354 26 63 38 40 1-16 mm
HSK63A-SNER25-430-D38 452 430 404 26 63 38 40 1-16 mm
HSK63A-SNER25-500-D38 522 500 474 26 63 38 40 1-16 mm
HSK63A-SNER32-180-D48 202 180 154 26 63 48 50 2-20 mm
HSK63A-SNER32-230-D48 252 230 204 26 63 48 50 2-20 mm
HSK63A-SNER32-280-D48 302 280 254 26 63 48 50 2-20 mm
HSK63A-SNER32-330-D48 352 330 304 26 63 48 50 2-20 mm
HSK63A-SNER32-380-D48 402 380 354 26 63 48 50 2-20 mm
HSK63A-SNER32-430-D48 452 430 404 26 63 48 50 2-20 mm
HSK63A-SNER32-500-D48 522 500 474 26 63 48 50 2-20 mm

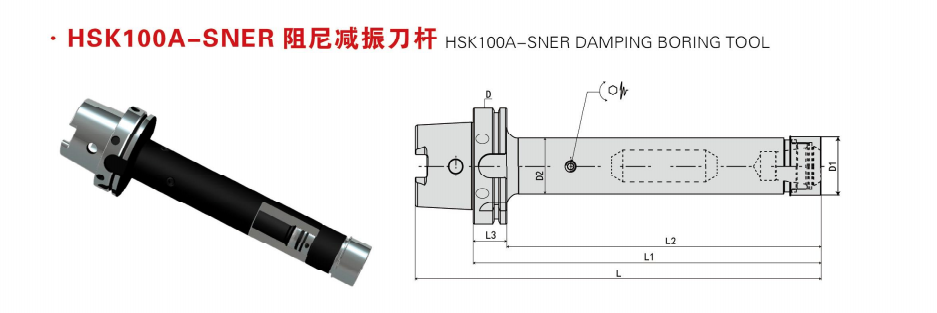

规格 L L1 L2 L3 D D1 D2 夹持范围Range
HSK100A-SNER25-230-D38 270 230 201 29 100 38 40 1-16 mm
HSK100A-SNER25-280-D38 320 280 251 29 100 38 40 1-16 mm
HSK100A-SNER25-330-D38 370 330 301 29 100 38 40 1-16 mm
HSK100A-SNER25-380-D38 420 380 351 29 100 38 40 1-16 mm
HSK100A-SNER25-430-D38 470 430 401 29 100 38 40 1-16 mm
HSK100A-SNER25-480-D38 520 480 451 29 100 38 40 1-16 mm
HSK100A-SNER25-530-D38 570 530 501 29 100 38 40 1-16 mm
HSK100A-SNER25-600-D38 640 600 571 29 100 38 40 1-16 mm
HSK100A-SNER32-230-D48 270 230 201 29 100 48 50 2-20 mm
HSK100A-SNER32-280-D48 320 280 251 29 100 48 50 2-20 mm
HSK100A-SNER32-330-D48 370 330 301 29 100 48 50 2-20 mm
HSK100A-SNER32-380-D48 420 380 351 29 100 48 50 2-20 mm
HSK100A-SNER32-430-D48 470 430 401 29 100 48 50 2-20 mm
HSK100A-SNER32-480-D48 520 480 451 29 100 48 50 2-20 mm
HSK100A-SNER32-530-D48 570 530 501 29 100 48 50 2-20 mm
HSK100A-SNER32-580-D48 620 580 551 29 100 48 50 2-20 mm
HSK100A-SNER32-630-D48 670 630 601 29 100 48 50 2-20 mm
HSK100A-SNER32-700-D48 740 700 671 29 100 48 50 2-20 mm
HSK100A-SNER40-230-D58 270 230 201 29 100 58 63 2-26 mm
HSK100A-SNER40-280-D58 320 280 251 29 100 58 63 2-26 mm
HSK100A-SNER40-330-D58 370 330 301 29 100 58 63 2-26 mm
HSK100A-SNER40-380-D58 420 380 351 29 100 58 63 2-26 mm
HSK100A-SNER40-430-D58 470 430 401 29 100 58 63 2-26 mm
HSK100A-SNER40-480-D58 520 480 451 29 100 58 63 2-26 mm
HSK100A-SNER40-530-D58 570 530 501 29 100 58 63 2-26 mm
HSK100A-SNER40-580-D58 620 580 551 29 100 58 63 2-26 mm
HSK100A-SNER40-630-D58 670 630 601 29 100 58 63 2-26 mm
HSK100A-SNER40-700-D58 740 700 671 29 100 58 63 2-26 mm
