HOME / PRODUCT CENTER - Damping Tool - CNC machine tool HSK63A HSK100A -FMHC damping milling tool holder
CNC machine tool HSK63A HSK100A -FMHC damping milling tool holder
  • Taper handle：
  • Hardness：
  • Material：
  • Accuracy：
CONTACT US
  • PARAMETERS
  • VEDIOS

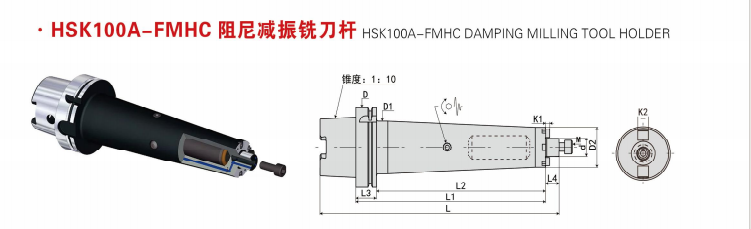

规格 L L1 L2 L3 L4 D D1 D2 d k1 k2 M FIG
HSK100A-FMHC16-200L-D37 267 200 171 29 17 100 40 37 16 3.2 8 M8*1.25P 1
HSK100A-FMHC16-250L-D37 317 250 221 29 17 100 40 37 16 3.2 8 M8*1.25P 1
HSK100A-FMHC16-300L-D37 367 300 271 29 17 100 40 37 16 3.2 8 M8*1.25P 1
HSK100A-FMHC16-350L-D37 417 350 321 29 17 100 40 37 16 3.2 8 M8*1.25P 1
HSK100A-FMHC22-200L-D47 268 200 171 29 18 100 50 47 22 4.8 10 M10*1.25P 1
HSK100A-FMHC22-250L-D47 318 250 221 29 18 100 50 47 22 4.8 10 M10*1.25P 1
HSK100A-FMHC22-300L-D47 368 300 271 29 18 100 50 47 22 4.8 10 M10*1.25P 1
HSK100A-FMHC22-350L-D47 418 350 321 29 18 100 50 47 22 4.8 10 M10*1.25P 1
HSK100A-FMHC22-400L-D47 468 400 371 29 18 100 50 47 22 4.8 10 M10*1.25P 1
HSK100A-FMHC22-450L-D47 518 450 421 29 18 100 50 47 22 4.8 10 M10*1.25P 1
HSK100A-FMHC22-500L-D47 568 500 471 29 18 100 50 47 22 4.8 10 M10*1.25P 1
HSK100A-FMHC22-550L-D47 618 550 521 29 18 100 50 47 22 4.8 10 M10*1.25P 1
HSK100A-FMHC22-600L-D47 668 600 571 29 18 100 50 47 22 4.8 10 M10*1.25P 1
HSK100A-FMHC22-650L-D47 718 650 621 29 18 100 50 47 22 4.8 10 M10*1.25P 1
HSK100A-FMHC22-700L-D47 768 700 671 29 18 100 50 47 22 4.8 10 M10*1.25P 1
HSK100A-FMHC22-250L-D58 318 250 221 29 18 100 62 58 22 4.8 10 M10*1.25P 1
HSK100A-FMHC22-300L-D58 368 300 271 29 18 100 62 58 22 4.8 10 M10*1.25P 1
HSK100A-FMHC22-350L-D58 418 350 321 29 18 100 62 58 22 4.8 10 M10*1.25P 1
HSK100A-FMHC22-400L-D58 468 400 371 29 18 100 62 58 22 4.8 10 M10*1.25P 1
HSK100A-FMHC22-450L-D58 518 450 421 29 18 100 62 58 22 4.8 10 M10*1.25P 1
HSK100A-FMHC22-500L-D58 568 500 471 29 18 100 62 58 22 4.8 10 M10*1.25P 1
HSK100A-FMHC22-550L-D58 618 550 521 29 18 100 62 58 22 4.8 10 M10*1.25P 1
HSK100A-FMHC22-600L-D58 668 600 571 29 18 100 62 58 22 4.8 10 M10*1.25P 1
HSK100A-FMHC22-650L-D58 718 650 621 29 18 100 62 58 22 4.8 10 M10*1.25P 1
HSK100A-FMHC22-700L-D58 768 700 671 29 18 100 62 58 22 4.8 10 M10*1.25P 1
HSK100A-FMHC27-250L-D60 320 250 221 29 20 100 78 60 27 5.8 12 M12*1.75P 2
HSK100A-FMHC27-300L-D60 370 300 271 29 20 100 78 60 27 5.8 12 M12*1.75P 2
HSK100A-FMHC27-350L-D60 420 350 321 29 20 100 78 60 27 5.8 12 M12*1.75P 2
HSK100A-FMHC27-400L-D60 470 400 371 29 20 100 78 60 27 5.8 12 M12*1.75P 2
HSK100A-FMHC27-450L-D60 520 450 421 29 20 100 78 60 27 5.8 12 M12*1.75P 2
HSK100A-FMHC27-500L-D60 570 500 471 29 20 100 78 60 27 5.8 12 M12*1.75P 2
HSK100A-FMHC27-550L-D60 620 550 521 29 20 100 78 60 27 5.8 12 M12*1.75P 2
HSK100A-FMHC27-600L-D60 670 600 571 29 20 100 78 60 27 5.8 12 M12*1.75P 2
HSK100A-FMHC27-650L-D60 720 650 621 29 20 100 78 60 27 5.8 12 M12*1.75P 2
HSK100A-FMHC27-700L-D60 770 700 671 29 20 100 78 60 27 5.8 12 M12*1.75P 2
HSK100A-FMHC27-250L-D74 320 250 221 29 20 100 78 74 27 5.8 12 M12*1.75P 2
HSK100A-FMHC27-300L-D74 370 300 271 29 20 100 78 74 27 5.8 12 M12*1.75P 2
HSK100A-FMHC27-350L-D74 420 350 321 29 20 100 78 74 27 5.8 12 M12*1.75P 2
HSK100A-FMHC27-400L-D74 470 400 371 29 20 100 78 74 27 5.8 12 M12*1.75P 2
HSK100A-FMHC27-450L-D74 520 450 421 29 20 100 78 74 27 5.8 12 M12*1.75P 2
HSK100A-FMHC27-500L-D74 570 500 471 29 20 100 78 74 27 5.8 12 M12*1.75P 2
HSK100A-FMHC27-550L-D74 620 550 521 29 20 100 78 74 27 5.8 12 M12*1.75P 2
HSK100A-FMHC27-600L-D74 670 600 571 29 20 100 78 74 27 5.8 12 M12*1.75P 2
HSK100A-FMHC27-650L-D74 720 650 621 29 20 100 78 74 27 5.8 12 M12*1.75P 2
HSK100A-FMHC27-700L-D74 770 700 671 29 20 100 78 74 27 5.8 12 M12*1.75P 2
HSK100A-FMHC32-250L-D80 322 250 221 29 22 100 95 80 32 6.8 14 M16*2.0P 2
HSK100A-FMHC32-300L-D80 372 300 271 29 22 100 95 80 32 6.8 14 M16*2.0P 2
HSK100A-FMHC32-350L-D80 422 350 321 29 22 100 95 80 32 6.8 14 M16*2.0P 2
HSK100A-FMHC32-400L-D80 472 400 371 29 22 100 95 80 32 6.8 14 M16*2.0P 2
HSK100A-FMHC32-450L-D80 522 450 421 29 22 100 95 80 32 6.8 14 M16*2.0P 2
HSK100A-FMHC32-500L-D80 572 500 471 29 22 100 95 80 32 6.8 14 M16*2.0P 2
HSK100A-FMHC32-550L-D80 622 550 521 29 22 100 95 80 32 6.8 14 M16*2.0P 2
HSK100A-FMHC32-600L-D80 672 600 571 29 22 100 95 80 32 6.8 14 M16*2.0P 2
HSK100A-FMHC40-300L-D90 375 300 271 29 25 100 98 90 40 8.3 16 M16*2.0P 2
HSK100A-FMHC40-350L-D90 425 350 321 29 25 100 98 90 40 8.3 16 M16*2.0P 2
HSK100A-FMHC40-400L-D90 475 400 371 29 25 100 98 90 40 8.3 16 M16*2.0P 2
HSK100A-FMHC40-450L-D90 525 450 421 29 25 100 98 90 40 8.3 16 M16*2.0P 2
HSK100A-FMHC40-500L-D90 575 500 471 29 25 100 98 90 40 8.3 16 M16*2.0P 2
HSK100A-FMHC40-550L-D90 625 550 521 29 25 100 98 90 40 8.3 16 M16*2.0P 2
HSK100A-FMHC40-600L-D90 675 600 571 29 25 100 98 90 40 8.3 16 M16*2.0P 2
