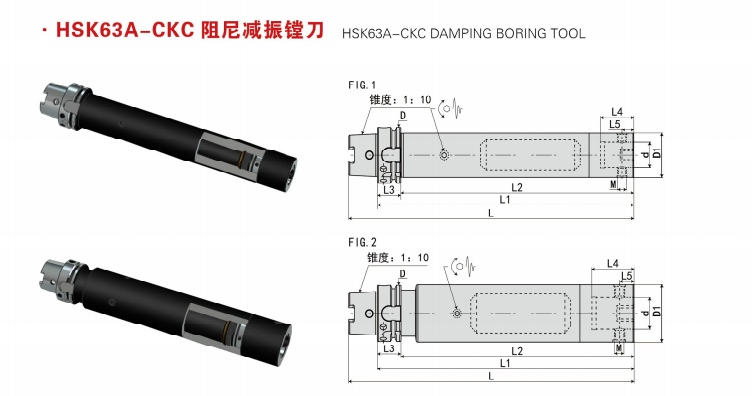

CNC machine tool HSK63A -CKC damping boring tool
- Taper handle：
- Hardness：
- Material：
- Accuracy：
CONTACT US
- PARAMETERS
- VEDIOS
| 规格 | L | L1 | L2 | L3 | L4 | L5 | D | D1 | d | M |
| HSK63A-CKC2-150L-D25 | 182 | 150 | 124 | 26 | 31 | 6.62 | 63 | 25 | 14 | M5*0.5P |
| HSK63A-CKC2-175L-D25 | 207 | 175 | 149 | 26 | 31 | 6.62 | 63 | 25 | 14 | M5*0.5P |
| HSK63A-CKC2-200L-D25 | 232 | 200 | 174 | 26 | 31 | 6.62 | 63 | 25 | 14 | M5*0.5P |
| HSK63A-CKC3-200L-D32 | 232 | 200 | 174 | 26 | 35 | 8 | 63 | 32 | 18 | M6*0.75P |
| HSK63A-CKC3-230L-D32 | 262 | 230 | 204 | 26 | 35 | 8 | 63 | 32 | 18 | M6*0.75P |
| HSK63A-CKC3-260L-D32 | 292 | 260 | 234 | 26 | 35 | 8 | 63 | 32 | 18 | M6*0.75P |
| HSK63A-CKC3-300L-D32 | 332 | 300 | 274 | 26 | 35 | 8 | 63 | 32 | 18 | M6*0.75P |
| HSK63A-CKC4-235L-D40 | 267 | 235 | 209 | 26 | 39 | 10 | 63 | 40 | 22 | M8*0.75P |
| HSK63A-CKC4-275L-D40 | 307 | 275 | 249 | 26 | 39 | 10 | 63 | 40 | 22 | M8*0.75P |
| HSK63A-CKC4-315L-D40 | 347 | 315 | 289 | 26 | 39 | 10 | 63 | 40 | 22 | M8*0.75P |
| HSK63A-CKC4-350L-D40 | 382 | 350 | 324 | 26 | 39 | 10 | 63 | 40 | 22 | M8*0.75P |
| HSK63A-CKC5-315L-D50 | 347 | 315 | 289 | 26 | 45 | 13 | 63 | 50 | 28 | M10*1.0P |
| HSK63A-CKC5-350L-D50 | 382 | 350 | 324 | 26 | 45 | 13 | 63 | 50 | 28 | M10*1.0P |
| HSK63A-CKC5-400L-D50 | 432 | 400 | 374 | 26 | 45 | 13 | 63 | 50 | 28 | M10*1.0P |
| HSK63A-CKC5-450L-D50 | 482 | 450 | 424 | 26 | 45 | 13 | 63 | 50 | 28 | M10*1.0P |
| HSK63A-CKC5-500L-D50 | 532 | 500 | 474 | 26 | 45 | 13 | 63 | 50 | 28 | M10*1.0P |
| HSK63A-CKC6-295L-D63 | 327 | 295 | 269 | 26 | 55 | 16 | 63 | 63 | 36 | M12*1.0P |
| HSK63A-CKC6-350L-D63 | 382 | 350 | 324 | 26 | 55 | 16 | 63 | 63 | 36 | M12*1.0P |
| HSK63A-CKC6-400L-D63 | 432 | 400 | 374 | 26 | 55 | 16 | 63 | 63 | 36 | M12*1.0P |
| HSK63A-CKC6-450L-D63 | 482 | 450 | 424 | 26 | 55 | 16 | 63 | 63 | 36 | M12*1.0P |
| HSK63A-CKC6-500L-D63 | 532 | 500 | 474 | 26 | 55 | 16 | 63 | 63 | 36 | M12*1.0P |
