ASSURED QUALITY
Details determine success or failure, precision casts quality
HOME / PRODUCT CENTER - BT CNC TOOL SYSTEMS - BT40-BSB 90°DEGREE SLANT-INSERTED TYPE ROUGH BORING HOLDERS

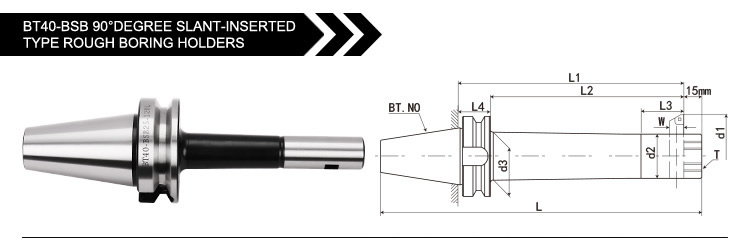

BT40-BSB 90°DEGREE SLANT-INSERTED TYPE ROUGH BORING HOLDERS
  • Taper handle：
  • Hardness：
  • Material：
  • Accuracy：
Material:42CrMo
Hardness:50-52HRC
Accuracy:0.003mm
CONTACT US
  • PARAMETERS
  • VEDIOS

Model d1 d2 d3 L L2 L3 L4 Square hole
W 		Screw hole
T
machine holes
Min 		Machining holes
Max
BT40-BSB25-120L 25 52 20 22 200.4 93 35 27 8 M6*1.0P
BT40-BSB30-150L 30 57 25 27 230.4 123 40 27 8 M6*1.0P
BT40-BSB38-165L 38 70 30 33 245.4 138 55 27 10 M8*1.25P
BT40-BSB42-165L 42 74 34 37 245.4 138 55 27 10 M8*1.25P
BT40-BSB50-165L 50 90 40 44 245.4 138 55 27 13 M10*1.5P
BT40-BSB62-180L 62 115 50 56 260.4 153 80 27 16 M10*1.5P
BT40-BSB72-180L 72 125 60 66 260.4 153 80 27 19 M12*1.75P
BT40-BSB90-180L 90 150 75 260.4 153 115 27 19 M12*1.75P
