GT12 GT24 tapping Chuck Collet M4 M6 M8 M10 M12 M14 M16 M18 M20 tapping tap Chuck telescopic tool holder
- Taper handle：
- Hardness：
- Material：
- Accuracy：
High strength
High rigidity
Good shock resistance
CONTACT US
- PARAMETERS
- VEDIOS

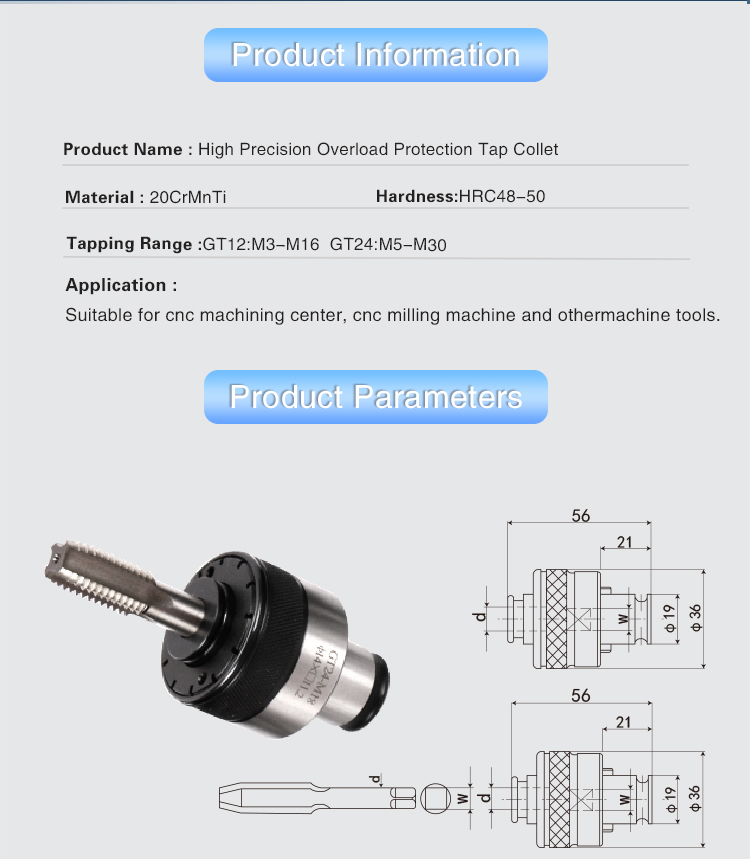

Material :20CrMnTi
Hardness:HRC48-50
Tapping Range :GT12:M3-M16 GT24:M5-M30
Hardness:HRC48-50
Tapping Range :GT12:M3-M16 GT24:M5-M30
Application :Suitable for cnc machining center, cnc milling machine and other machine tools
| Model(ISO) | (ISO) | d | W |
| ISO-GT12-M3 | M3 | 3.15 | 2.5X2.5 |
| ISO-GT12-M4 | M4 | 4 | 3.15X3.15 |
| ISO-GT12-M5 | M5 | 5 | 4X4 |
| ISO-GT12-M6 | M6 | 6.3 | 5X5 |
| ISO-GT12-M8 | M8 | 6.3 | 5X5 |
| ISO-GT12-M10 | M10 | 8 | 6.3X6.3 |
| ISO-GT12-M12 | M12 | 9 | 7.1X7.1 |
| ISO-GT12-M14 | M14 | 11.2 | 9X9 |
| ISO-GT12-M16 | M16 | 12.5 | 10X10 |
