3 jaw lathe chuck
- Taper handle：
- Hardness：
- Material：
- Accuracy：
3 jaw lathe chuck
4 jaw lathe chuck
CONTACT US
- PARAMETERS
- VEDIOS

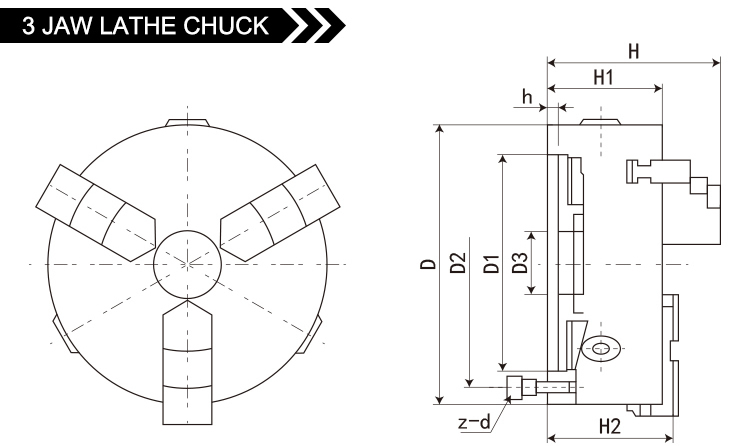

| Model | D1 | D2 | D3 | H | H1 | H2 | h | S | z-d |
| 80 | 55 | 66 | 16 | 66 | 50 | - | 3.5 | 8 | 3-M6 |
| 100 | 72 | 84 | 22 | 74.5 | 55 | - | 3.5 | 8 | 3-M8 |
| 125 | 95 | 108 | 30 | 84 | 58 | - | 4 | 10 | 3-M8 |
| 130 | 100 | 115 | 30 | 86 | 60 | - | 3.5 | 10 | 3-M8 |
| 160 | 130 | 142 | 40 | 95 | 65 | - | 5 | 10 | 3-M8 |
| 160A | 130 | 142 | 40 | 109 | 65 | 71 | 5 | 10 | 3-M8 |
| 165 | 130 | 145 | 40 | 96.5 | 66.5 | - | 4.5 | 12 | 3-M8 |
| 190 | 155 | 172 | 55 | 105 | 75 | - | 5 | 12 | 3-M10 |
| 200 | 165 | 180 | 65 | 109 | 75 | - | 5 | 12 | 3-M10 |
| 200C | 1165 | 180 | 65 | 122 | 75 | 78 | 5 | 12 | 3-M10 |
| 200A | 165 | 180 | 65 | 122 | 75 | 80 | 5 | 12 | 3-M10 |
| 240 | 19 | 215 | 70 | 120 | 80 | - | 8 | 12 | 3-M12 |
| 240C | 195 | 215 | 70 | 130 | 80 | 84 | 8 | 12 | 3-M12 |
| 250 | 206 | 226 | 80 | 120 | 80 | - | 5 | 12 | 3-M12 |
| 250C | 206 | 226 | 80 | 130 | 80 | 84 | 5 | 12 | 3-M12 |
| 250A | 206 | 226 | 80 | 136 | 80 | 86 | 5 | 12 | 3-M12 |
| 315 | 260 | 285 | 100 | 147 | 90 | - | 6 | 14 | 3-M16 |
| 315A | 285 | 285 | 100 | 153 | 90 | 95 | 6 | 14 | 3-M16 |
| 320 | 270 | 290 | 100 | 152.5 | 95 | - | 11 | 13 | 3-M16 |
| 320C | 270 | 290 | 100 | 153.5 | 95 | 101.5 | 11 | 13 | 3-M16 |
| 325 | 272 | 296 | 100 | 153.5 | 96 | - | 12 | 13 | 3-M16 |
| 325C | 272 | 296 | 100 | 154.5 | 96 | 102.5 | 12 | 13 | 3-M16 |
| 325A | 272 | 296 | 100 | 169.5 | 96 | 105.5 | 12 | 13 | 3-M16 |
| 380 | 325 | 350 | 135 | 155.7 | 98 | - | 6 | 14 | 3-M16 |
| 380C | 325 | 350 | 135 | 156.5 | 98 | 104.5 | 6 | 14 | 3-M16 |
| 380A | 325 | 350 | 135 | 171.5 | 98 | 107.5 | 6 | 14 | 3-M16 |
| 400 | 340 | 368 | 138 | 158 | 100 | - | 6 | 17 | 3-M16 |
| 400D | 340 | 368 | 138 | 172 | 100 | 108 | 6 | 17 | 3-M16 |
| 500 | 440 | 465 | 210 | 184 | 115 | - | 6 | 17 | 6-M16 |
| 500D | 440 | 465 | 210 | 202 | 115 | 126 | 6 | 17 | 6-M16 |
| 500A | 440 | 465 | 210 | 202 | 115 | 126 | 6 | 17 | 6-M16 |
| 630 | 560 | 595 | 270 | 214 | 133.5 | - | 7 | 19 | 6-M16 |
| 630D | 560 | 595 | 270 | 218 | 133.5 | 142 | 7 | 19 | 6-M16 |
| 630E | 560 | 595 | 270 | 220.5 | 133.5 | 142 | 7 | 19 | 6-M16 |
| 800D | 710 | 760 | 385 | 250 | 161 | 170 | 8.5 | 21 | 6-M20 |
| 800E | 710 | 760 | 385 | 250 | 161 | 170 | 8.5 | 21 | 6-M20 |
| 1000E | 905 | 950 | 460 | 310 | 198 | 216 | 9 | 24 | 6-M24 |
