CNC lathe bar puller
- Taper handle：
- Hardness：
- Material：
- Accuracy：
Simple structure， precise and reliable action

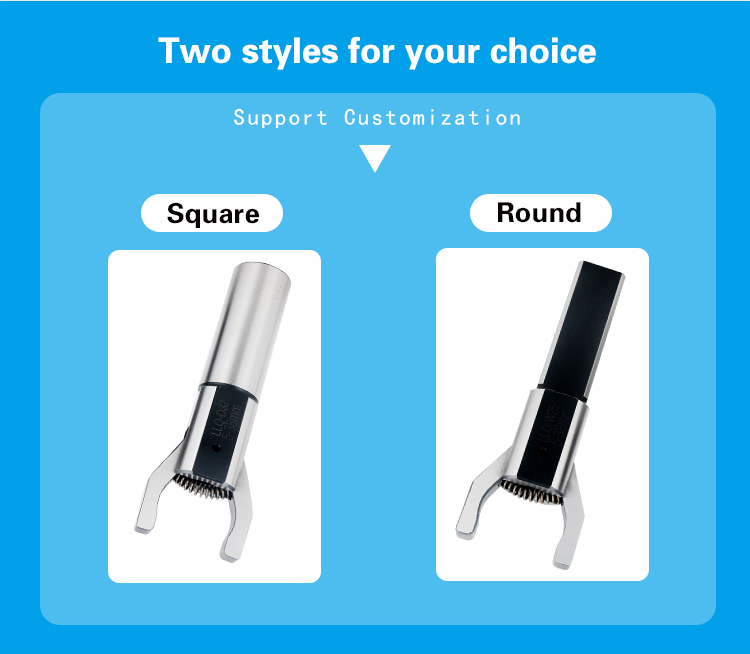

Square and round shank type
CONTACT US
- PARAMETERS
- VEDIOS
Features
The automatic material puller is designed as spring-retractable type, which can replace the traditional hydraulic type feeding leaf, with very high pulling accuracy and easy installation and operation.

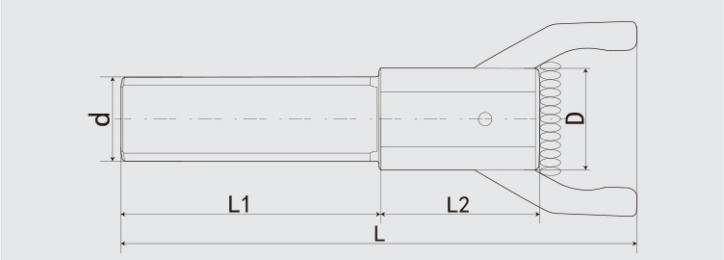

| Model | L | L1 | L2 | D | d | Shank type |
| LLQ-W16 | 159 | 75 | 47 | 30 | 16 | Square |
| LLQ-W20 | 159 | 75 | 47 | 30 | 20 | |
| LLQ-W25 | 159 | 75 | 47 | 30 | 25 | |
| LLQ-D16 | 159 | 75 | 47 | 30 | 16 | Round |
| LLQ-D20 | 159 | 75 | 47 | 30 | 20 | |
| LLQ-D25 | 159 | 75 | 47 | 30 | 25 | |
| LLQ-D32 | 159 | 75 | 47 | 30 | 32 |
