Application :
It is used for surface grinding machines, milling machines, EDM and wire cutting machines to complete the processing
of angle planes, grooves and plane obliqueholes, and can be used for the measurement of various angle parts. It can
maintain high accuracy whether it is horizontal, vertical or horizontal during the work

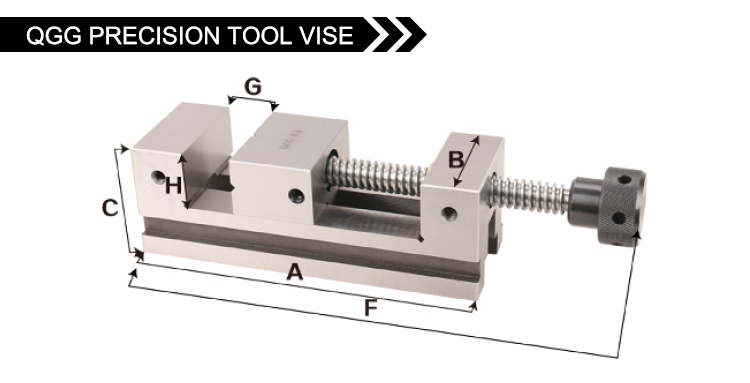

| Model |
Length(A) |
Width(B) |
Height(C) |
Jaw Height(H) |
Max Jaw Opening(G) |
F |
KG |
| QGG50 | 155 | 50 | 50 | 25 | 65 | 193 | 2.2 |
| QGG60 | 110 | 60 | 60 | 25 | 55 | 165 | 2 |
| QGG63 | 190 | 63 | 65 | 32 | 85 | 228 | 4.3 |
| QGG73 | 210 | 73 | 74 | 35 | 100 | 252 | 6 |
| QGG80 | 220 | 80 | 84 | 40 | 100 | 262 | 7.8 |
| QGG88 | 250 | 88 | 88 | 40 | 125 | 292 | 9.5 |
| QGG100 | 260 | 100 | 95 | 45 | 125 | 302 | 12.5 |
| QGG125 | 300 | 125 | 110 | 50 | 160 | 342 | 19.5 |
| QGG150 | 315 | 150 | 110 | 50 | 175 | 365 | 24.5 |
