J46 reversible tapping chuck
- Taper handle：
- Hardness：
- Material：
- Accuracy：
Quality materials
High pre cision and afficiency
High hardness
Good abrasion resistance
CONTACT US
- PARAMETERS
- VEDIOS
Model J46 reversible tapping chuck is a new type of tapping chuck with functions of reversible, overload
protection and adjustable torque, etc. It has the features of compact structure, high efficiency, safety and
reliability, and easy to use.

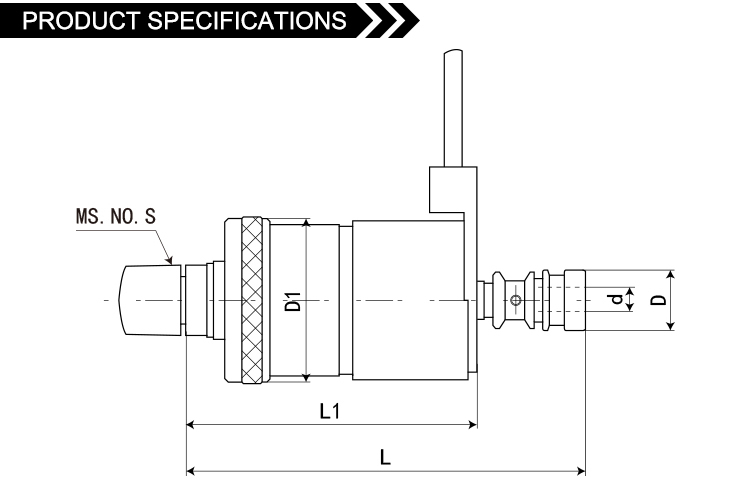

| Model | Tapping range | d | D | D1 | L | L1 | MS.NO.S | |
| J467 | M2-M7 | 2.5-6.5 | 23 | 55 | 135 | 95 | MS2-JT33 MS3-JT33 | |
| J4612 | M5-M12 | 3.5-10 | 28 | 75 | 164 | 114.5 | MS3-JT16 MS3-JT16 | |
| J4620 | M8-M20 | 6.0-14 | 38 | 90.5 | 205 | 135 | MS6-JT20 MS3-JT20 |

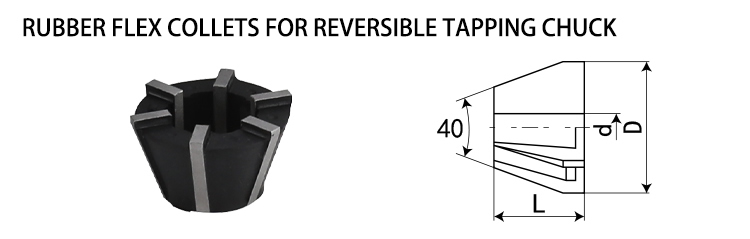

| 型号 Model | D | d | L |
| J467-1 | 15 | 2.5-4.2 | 11 |
| J467-2 | 15 | 4.2-6.5 | 11 |
| J4612-1 | 21 | 3.5-7.0 | 13 |
| J4612-2 | 21 | 7.0-10 | 13 |
| J4620-1 | 26.5 | 6.0-9.0 | 15 |
| J4620-2 | 26.5 | 9.0-14 | 15 |
| J4620-3 | 26.9 | 12.7-19.05 | 12 |
