QM16 Machine vise
- Taper handle：
- Hardness：
- Material：
- Accuracy：
Product Name:QM16 Series Precision Machine vise
Material:steel
Brand :Ounuowei
OEM/ODM:Support
CONTACT US

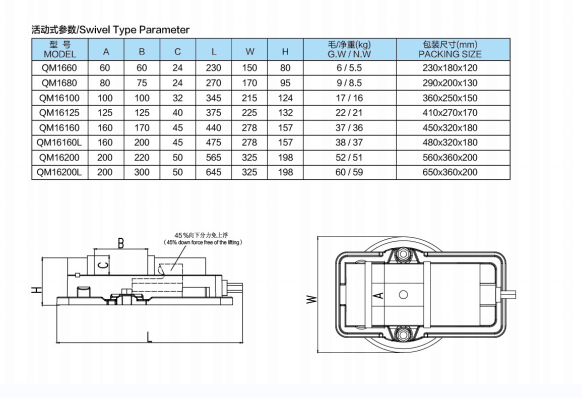

- PARAMETERS
- VEDIOS
Feature
1.Suitable for general miling machine, CNC milling machine, machining center.
2.QM angle machine vice is an economical vice.
3.The verticality of the caliper and the clamp body is within 0.025MM10OMM.
4.The semi sphericall structure is used to clamp the workpiece downward 45
degree clamping force so that the workpiece does not filoat.
5.The base is calibrated in degrees and rotated horizontally at 360 degrees.
6.The fixed side of the screw adopts the pulling power bearing and reduce the force.
