HSK63A GSK Tool Holder
- Taper handle：
- Hardness：
- Material：
- Accuracy：
Product Name: HSK63A GSK Tool Holder
Material:20CrMnTi
Keyword:Tool Holder
OEM/ODM:Support
Advantage :One stop purchasing
CONTACT US
- PARAMETERS
- VEDIOS

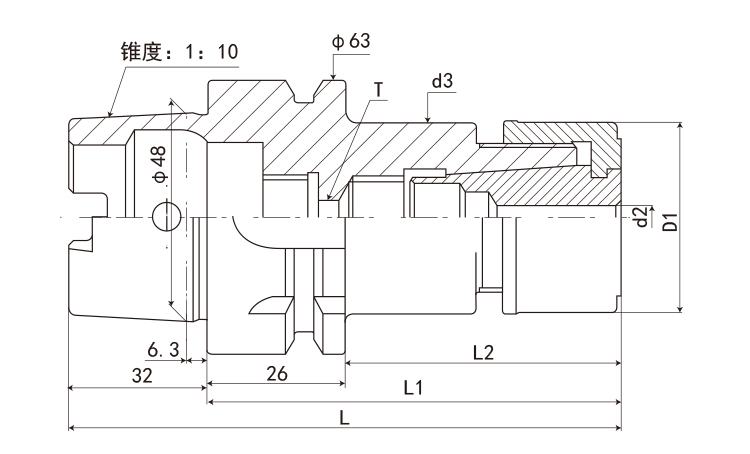

| Model | Handle | L | L1 | L2 | D1 | d2 | d3 | T | KGS |
| HSK63A-GSK06- 70L | HSK63A | 102 | 70 | 44 | 19.5 | 2-6mm | 20 | M10*1.0P | 1 |
| -100L | HSK63A | 132 | 100 | 74 | 19.5 | 2-6mm | 20 | 1 | |
| -120L | HSK63A | 152 | 120 | 94 | 19.5 | 2-6mm | 20 | ||
| -150L | HSK63A | 182 | 150 | 124 | 19.5 | 2-6mm | 20 | ||
| -GSK10- 70L | HSK63A | 102 | 70 | 44 | 27.5 | 2-10mm | 28 | 1 | |
| -100L | HSK63A | 132 | 100 | 74 | 27.5 | 2-10mm | 28 | 1 | |
| -120L | HSK63A | 152 | 120 | 94 | 27.5 | 2-10mm | 28 | ||
| -150L | HSK63A | 182 | 150 | 124 | 27.5 | 2-10mm | 28 | 1.5 | |
| -200L | HSK63A | 232 | 200 | 174 | 27.5 | 2-10mm | 28 | 1.5 | |
| -GSK13- 70L | HSK63A | 102 | 70 | 44 | 33 | 2-13mm | 33 | M16*1.0P | |
| -100L | HSK63A | 132 | 100 | 74 | 33 | 2-13mm | 33 | ||
| -120L | HSK63A | 152 | 120 | 94 | 33 | 2-13mm | 33 | ||
| -150L | HSK63A | 182 | 150 | 124 | 33 | 2-13mm | 33 | ||
| -200L | HSK63A | 232 | 200 | 174 | 33 | 2-13mm | 33 | ||
| -GSK16- 75L | HSK63A | 107 | 75 | 49 | 40 | 2-16mm | 40 | 1 | |
| -100L | HSK63A | 132 | 100 | 74 | 40 | 2-16mm | 40 | 1.5 | |
| -120L | HSK63A | 152 | 120 | 94 | 40 | 2-16mm | 40 | ||
| -150L | HSK63A | 182 | 150 | 124 | 40 | 2-16mm | 40 | 2 | |
| -200L | HSK63A | 232 | 200 | 174 | 40 | 2-16mm | 40 | ||
| -GSK20-100L | HSK63A | 132 | 100 | 74 | 48 | 2-20mm | 48 | 1.5 | |
| -150L | HSK63A | 182 | 150 | 124 | 48 | 2-20mm | 48 | 2.1 | |
| -200L | HSK63A | 232 | 200 | 174 | 48 | 2-20mm | 48 | ||
| -GSK25-100L | HSK63A | 132 | 100 | 74 | 50 | 2-25mm | 50 | M18*1.0P | 1.5 |
